XML

Why is OOXML Slow?

2006/10/19 By Rob 5 Comments

Of course, one could simply dismiss this question, saying that a specification for an XML vocabulary does not have performance as such, since a specification cannot be executed. However, the choices one makes in designing an XML language will impact the performance of the applications that work with the format. For example, both ODF and OOXML store their XML in compressed Zip files. This will cause reading and writing of a document to be faster in cases where memory is plentiful and computation is much faster than storage and retrieval, which is to say on most modern desktops. But this same scheme may be slower in other environments, say PDA’s. In the end, the performance characteristics of a format cannot be divorced from operational profile and environmental assumptions.

When comparing formats, it is important to isolate the effects of the format versus the application. This is important from the analysis standpoint, but also for legal reasons. Remember that the only implementation of (draft) OOXML is (beta) Office 2007, and the End User Licence Agreement (EULA) has this language:

7. SCOPE OF LICENSE. …You may not disclose the results of any benchmark tests of the software to any third party without Microsoft’s prior written approval

So let’s see what I can do while playing within those bounds. I started with a sample of 176 documents, randomly selected from the Ecma TC45’s document library. I’m hoping therefore that Microsoft will be less likely to argue that these are not typical. These documents are all in the legacy binary DOC format and include agendas, meeting minutes, drafts of various portions of the specification, etc.

Some basic statistics on this set of documents:

Min length = 1 page
Mode = 2 pages
Median length = 7 pages
Mean length = 34 pages
Max length = 409 pages

Min file size= 27,140 bytes
Median file size= 159,000 bytes
Mean file size= 749,000 bytes
Max file size= 15,870,000 bytes

So rather than pick a single document and claim that it reflects the whole, I looked at a wide range of document sizes in use within a specific document-centric organization.

I converted each document into ODF format as well as OOXML, using OpenOffice 2.03 and Office 2007 beta 2 respectively. As has been noted before, both ODF and OOXML formats are XML inside of a Zip archive. The compression from the zipping not only counters the expansion factor of the XML, but in fact results in files which are smaller than the original DOC files. The average OOXML document was 50% the size of the original DOC file, and the average ODF document was 38% the size of the DOC. So net result is that the ODF documents came out smaller, averaging 72% of their OOXML equivalents.

A quick sanity check of this result is easy to perform. Create an empty file in Word in OOXML format, and an empty file in OpenOffice in ODF format. Save both. The OOXML file ends up being 10,001 bytes, while the ODF file is only 6,888 bytes, or 69% of the OOXML file.

Here is a histogram of the ODF/OOXML size ratios for the sampled files. As you can see, there is a wide range of behaviors here, with some files even ending up larger in ODF format. But on average the ODF files were smaller.


What about the contents of the Zip archives? The OOXML documents tended to contain more XML files (on average 6 more) than the parallel ODF document, but these XML files were individually smaller, average 32,080 bytes versus 66,490 for ODF. However the net effect is that the average total size of the XML in the OOXML is greater than in ODF (684,856 bytes versus 401,406 bytes).

Here’s part 2 of the experiment. The proposal is that many (perhaps most) tools that deal with these formats will need to read and parse all of the XML files within the archive. So a core part of performance that these apps will share is how long it takes to unzip and parse these XML files. Of course this is only part of the performance story. What the application does with the parsed data is also critical, but that is application-dependent and hard to generalize. But the basic overhead of parsing is universal.

To test this out wrote a Python script to time how long it takes to unzip and parse (Python 2.4 minidom) all the XML’s in these 176 documents. I repeated each measurement 10 times and averaged. And I did this for both the OOXML and the ODF variants.

The results indicate that the ODF documents were parsed, on average 3.6x faster than the equivalent OOXML files. Here is a plot showing the ratio of OOXML parse time to ODF parse time as a function of page size:As you can see there is a wide variation in this ratio, especially with shorter documents. In some case the OOXML document took 8x or more longer time to parse than the equivelant ODF document. But with longer documents the variation settles out and settles on the 3.6x factor mentioned

Now how do we explain this? A rough model of XML parsing performance is that it has a fixed overhead to start up, initialize data structures, parse tables, etc., and then some incremental cost dependent on the size and complexity of the XML document. Most systems in the world work like this, fixed overhead plus incremental cost per unit of work. This is true whether we’re talking about XML parsing, HTTP transfers, cutting the lawn or giving blood at a blood bank. The general insight into these systems is that where the fixed overhead is significant, you want to batch up your work. Doing many small transactions will kill performance.

So one theory is that OOXML is slower because of the cost of initializing more XML parses. But it could also be because the aggregate size of the XML files are larger. More testing would be required to gauge the relative contribution of these two factors. However one thing is clear. Although this test was done with minidom on Python, the results are of wide applicability. I can think of no platform and no XML parser for which a larger document comprised of more XML files would be faster than a smaller document made up of fewer XML files. Parsing ODF word processing documents should be faster than OOXML versions everywhere.

I’m not the first one to notice some of these difference. Rick Jelliffe did some analysis of the differences between OOXML and ODF back in August. He approached it from a code complexity view, but in passing noted that the same word processor document loaded faster in ODF format in OpenOffice compared to the same document in OOXML format in Office 2007 beta. On the complexity side he noted that the ODF markup was more complex than the parallel OOXML document. So if ODF is more complex but also smaller, this may amount to higher information density, compactness of expression, etc., and that could certainly be a factor in performance.

So what’s your theory? Why do you think ODF word processing documents are faster than OOXML’s?

  • Tweet

Filed Under: ODF, OOXML, Performance, XML

The Celerity of Verbosity

2006/10/17 By Rob 16 Comments

I’ve been hearing some rumblings from the north-west that Ecma Office Open XML (OOXML) format has better performance characteristics than OpenDocument Format (ODF), specifically because OOXML uses shorter tag names. Putting aside for the moment the question of whether OOXML is in fact faster than ODF (something I happen not to believe), let’s take a look at this reasonable question: What effect does using longer, humanly readable tags have on performance compared to using more cryptic terse names?

Obviously there are a number of variables at play here:

  • What XML API are you using? DOM or SAX? The overhead of holding the entire document in memory at once would presumably cause DOM to suffer more from tag length than SAX.
  • What XML parser implementation are you using? The use of internal symbol tables might make tag length less important or even irrelevant in some parsers.
  • What language are you programming in? Some language, like Java have string internalization features which can conflate all identical strings into a single instance.
  • What size document are you working with? Document parsing has fixed overhead as well as overhead proportionate to document size. A very short document will be dominated by fixed costs.

So there may not be a single answer for all users with all tools in all situations.

First, let’s talk a little about the tag length issue. It is important to note that the designer of an XML language has control over some, but not all names. For example take a namespace declaration:

xmlns:ve="http://schemas.openxmlformats.org/markup-compatibility/2006"

The values of namespace URI’s are typically predetermined and are often long in order to reduce the chance of accidental collisions. But the namespace prefix is usually chosen to be quite short, and is under the control of the application writing the XML, though a specific prefix is typically not mandated by language designer.

Element and attribute names can certainly be set by the language designer.

Attribute values may or may not be determined by the language designer. For example:

val="Heading1"

Here the name of the style may be determined by the template, or even directly by the user if he is entering a new named style. So the language designer and the application may have no control over the length of attribute values. Other attribute values may be fixed as part of the schema, and the length of those are controlled by the language designer.

Similarly, the length of character content is also typically determined by the user, since this is typically how free-form user content is entered, i.e., the text of the document.

Finally, note that the core XML markup for beginning and ending elements, delimiting attribute values, character entities etc., are all non-negotiable. You can’t eliminate them to save space.

Now for a little experiment. For the sake of this investigation, I decided to explore the performance of a DOM parse in Python 2.4 of a medium-sized document. The document I picked was a random, 60 page document selected from Ecma TC45’s XML document library which I converted from Microsoft’s binary DOC format into OOXML.

As many of you know, an OOXML document is actually multiple XML documents stored inside a Zip archive file. The main content is in a file called “document.xml” so I restricted my examination to that file.

So, how much overhead is there in a our typical OOXML document? I wrote a little Python script to count up the size of all of the element names and attributes names that appeared in the document. I counted only the characters which were controllable by the language designer. So w:pPr counts as three characters, counting only “pPr” since the namespace and XML delimiters cannot be removed. “pPr” is what the XML specification calls an NCName, also called a non-qualified name, since it is not qualified or limited by a namespace. There were 51,800 NCName’s in this document, accounting for 16% of the overall document size. The average NCName was 3.2 characters long.

For comparison, a comparably sized ODF document had an average NCName length of 7.7 and an NCName’s represented 24% of the document size.

So, ODF certainly uses longer names than OOXML. Personally I think this is a good thing, from the perspective of readability, a concern of particular interest to the application developer. Machines will get faster, memory will get cheaper, bandwidth will increase and latency will decrease, but programmers will never get any smarter and schedules will never allow enough time to complete the project. Human Evolution progresses at too slow a speed. So if you need to make a small trade-off between readability and performance, I usually favor readability. I can always tune the code to make it faster. But the developers are at a permanent disadvantage if the language uses cryptic. I can’t tune them.

But let’s see if there is really a trade-off to be made here at all. Let’s measure, not assume. Do longer names really hurt performance as Microsoft claims?

Here’s what I did. I took the original document.xml and expanded the NCNames for the most commonly-used tags. Simple search and replace. First I doubled them in length. Then quadrupled. Then 8x longer. Then 16x and even 32x longer. I then timed 1,000 parses of these XML files, choosing the files at random to avoid any bias over time caused by memory fragmentation or whatever. The results are as follows:

Expansion Factor NCName Count Total NCName Size (bytes) File size (bytes) NCName Overhead Average NCName Length (bytes) Average Parse Time (seconds)
1 (original) 51,800 166,898 1,036,393 16% 3.2 3.3
2 51,800 187,244 1,056,739 18% 3.6 3.2
4 51,800 227,936 1,097,443 21% 4.4 3.2
8 51,800 309,320 1,178,827 26% 6.0 3.2
16 51,800 472,088 1,341,595 35% 9.1 3.3
32 51,800 797,624 1,667,131 48% 15.4 3.3

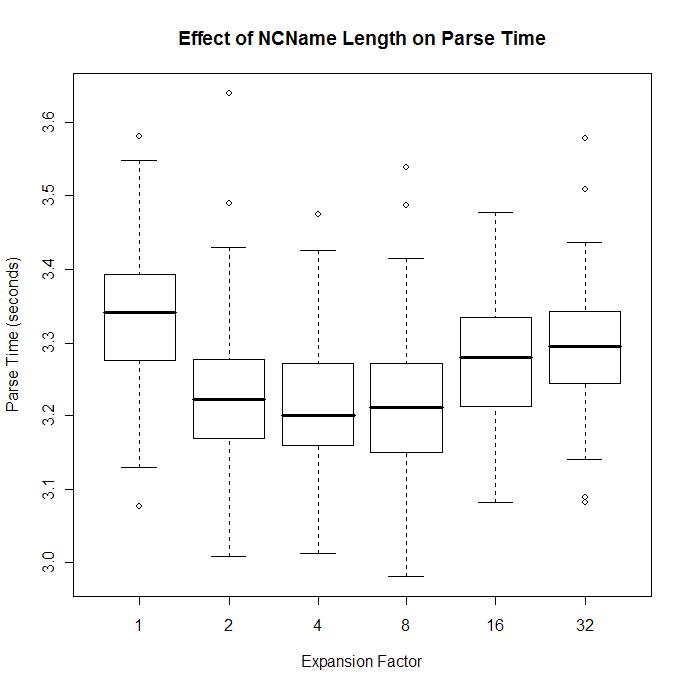

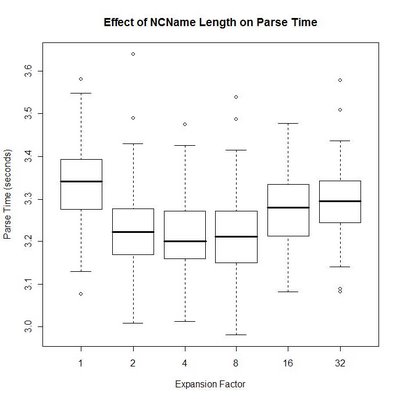

If you like box-and-whisker plots (I sure do!) then here you go:What does this all mean? Even though we expanded some NCNames to 32-times their original length, making a 5x increase in the average NCName length, it made no significant difference in parse time. There is no discernible slow down in parse time as the element and attribute names increase.

Keep in mind again that the typical ODF documents shows an average NCName length of 7.7 . The above tests dealt with lengths twice that amount, and still no slowdown.

“Myth Busted”. I revert this topic to the spreaders of such FUD to substantiate their contrary claims.

  • Tweet

Filed Under: ODF, OOXML, Performance, XML
